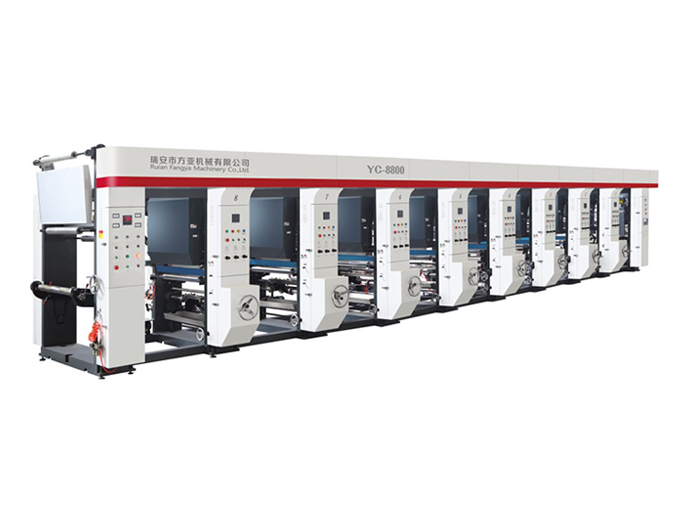

This kind of machinery is suitable for multi-color gravure printing of variousroll materials , plastics films and paper sheets . shaft-mounted versionpneumatic scraper , double cylinder embossing , built-in heating , heat dryingair-cooled cooling unit , centralized waste discharge , double-work station forunwinding and rewinding , main motor frequency speed regulatingthat it ensures stable tension , accuracy register , high efficiency , reasonabledesign , convenient and reliable operation are available

   Note : The extra options to match according to the clients'demand : Three -motor , five-motor or seven-motor tension synchronous control system , highspeed automatic material cutting and roll changing without stopping themachine can be added , obverse and inverse double-side computerizedregister mechanism can be added and can increase drying heat sourceincluding electricity , steam , heat transfer oil , natural gas , etc .

  Feature :

1 . Unwinding dual air shaft , discharge automatic tension

2 . Rewinding dual air shaft , torque motor rewinding , rewinding tractiontorque motor .

3 . With shaft hand cap type plate , oil-immersed sealing high precision gearbox transmission

4 . Dual axle two party a adjustable super-heavy pneumatic scarper , stringof momentum + 6mm

5 . Float roll type double cylinder embossing

6 . Drying equipment is circular hot air chamber .

7 . Air cooling device

8 . Concentrated exhaust device

9 . Computer register system can be added

10 . Still image system can be added

11 . Obverse and inverse double-side printing device can be added

12 . The printing group number can be fixed according to clientsrequirements

13 . The rewinding and unwinding diameter size and obverse and inverse

  概述:本機適用各種塑料薄膜、紙張等卷筒材料的凹版多色印刷。有軸裝版、氣動刮刀、雙氣缸壓印、內置加熱、熱風干燥、風冷冷卻裝置、集中排廢、收放料雙工位、主機變頻調速、張力穩定、套印準確、工作效率高、設計合理、使用方便可靠。

  注:可按客戶需要改配:三電機、五電機或七電機張力同步控制系統、可增配不停機自動裁接換卷、可增配正反印雙面電腦套色機構、干燥熱源:電、蒸汽、導熱油、天燃氣等

  主要特點

1、放卷雙氣脹軸、放料自動張力。

2、收卷雙氣脹軸、收料力矩電機,收料牽引力矩電機。

3、有軸手動式裝版,油浸式密封高精度離合齒輪箱傳動。

4、二方位可調的氣動刮刀。串動量±5mm。

5、擺輥式雙氣缸壓印。

6、干燥裝置為循環熱風箱。

7、設有風冷卻裝置。

8、集中排廢氣裝置。

9、可增配電腦套色系統。

10、可增配靜止畫面系統。

11、可增配正反雙面印刷裝置

12、印刷組數根據客戶要求定做。

13、收放料直徑大小、收放卷裝置內外置可按客戶要求定做。
