氣泡膜機系列

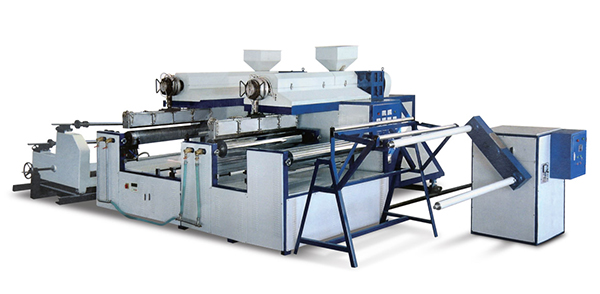

FYPE-1200-2000聚乙烯復合氣泡膜機組
  • FYPE-1200-2000聚乙烯復合氣泡膜機組

FYPE-1200-2000聚乙烯復合氣泡膜機組

  • 技術參數

This that draws domestic and inter national advanced technology extensively, through a great deal of production practices in having ordinary equipment originally, develop, designing, Can produced pol yethylene compou bubble(cushion)membrane in succession, Designs science, practical, rational in structure of the machine.


采用一次性成型工藝。廣泛吸取國內外新進技術,在原有普通型設備上通過大量的生產實踐、研制、設計,可以連續生產聚乙烯復合氣泡(墊) 膜。機器結構設計科學、實用、合理。



型號ModelFYPE-1200FYPE-1500FYPE-1800FYPE-2000
螺桿直徑Screw diameter

Φ65mm  Φ55mm

Φ75mm  Φ60mmΦ85mm  Φ65mmΦ95mm  Φ75mm
主電機功率Main motor power15kw 11kw18.5kw 15kw30kw 15kw37kw 18.5kw
產品寬度Film width1200mm1500mm1800mm2000mm
產量Output100kg/h120kg/h180kg/h220kg/h
總功率Total power95kw112kw141kw158kw
長徑比L/D30:130:130:130:1
線速度Linear speed1000m/h1000m/h900m/h800m/h
重量Weight5.5T6.8T7.5T8.2T
外形尺寸Overall Dimension( LxWxH)10000×7500×2500mm10000×8000×2500mm10000×9000×2500mm10000×10000×2500mm
